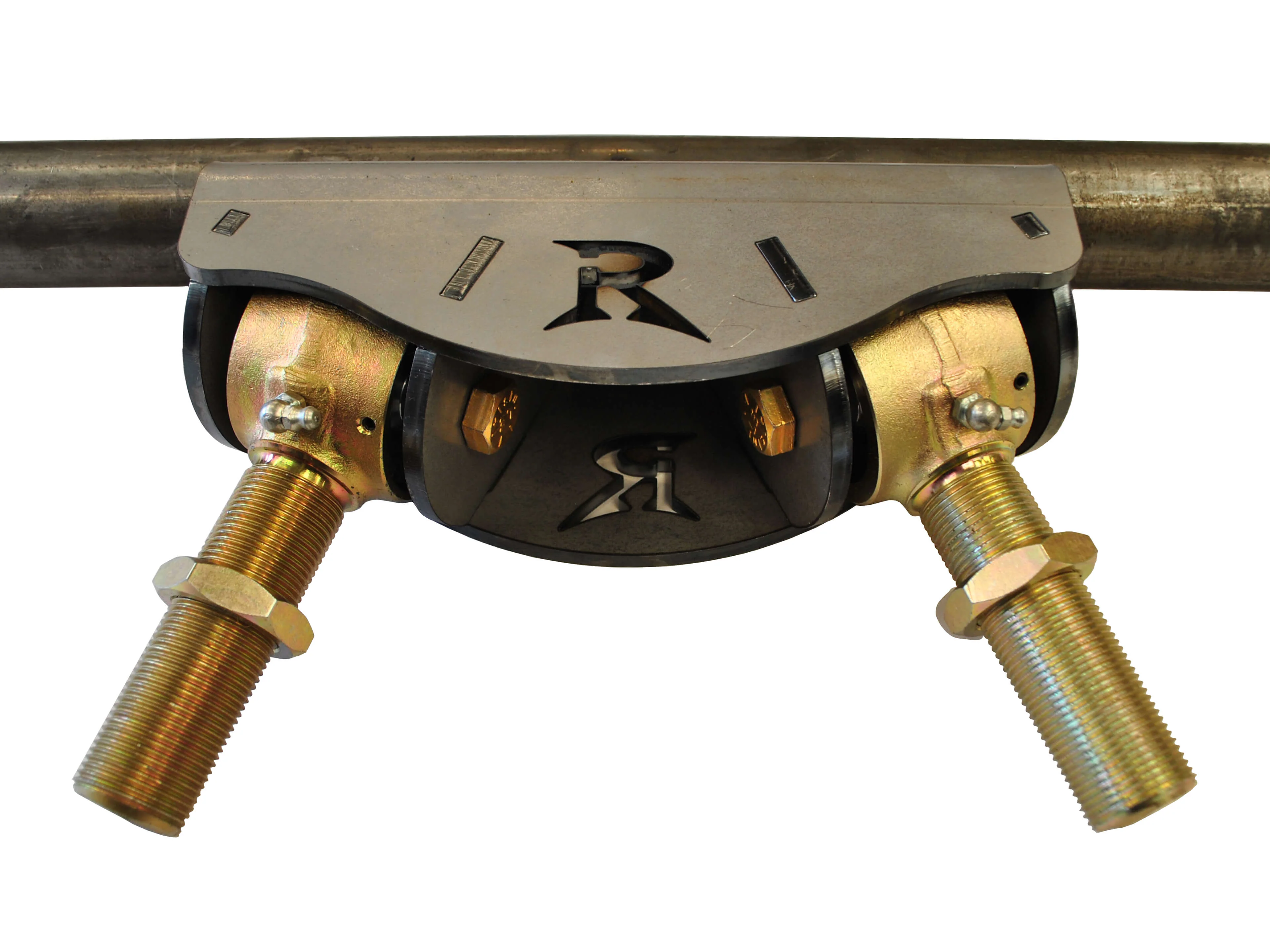

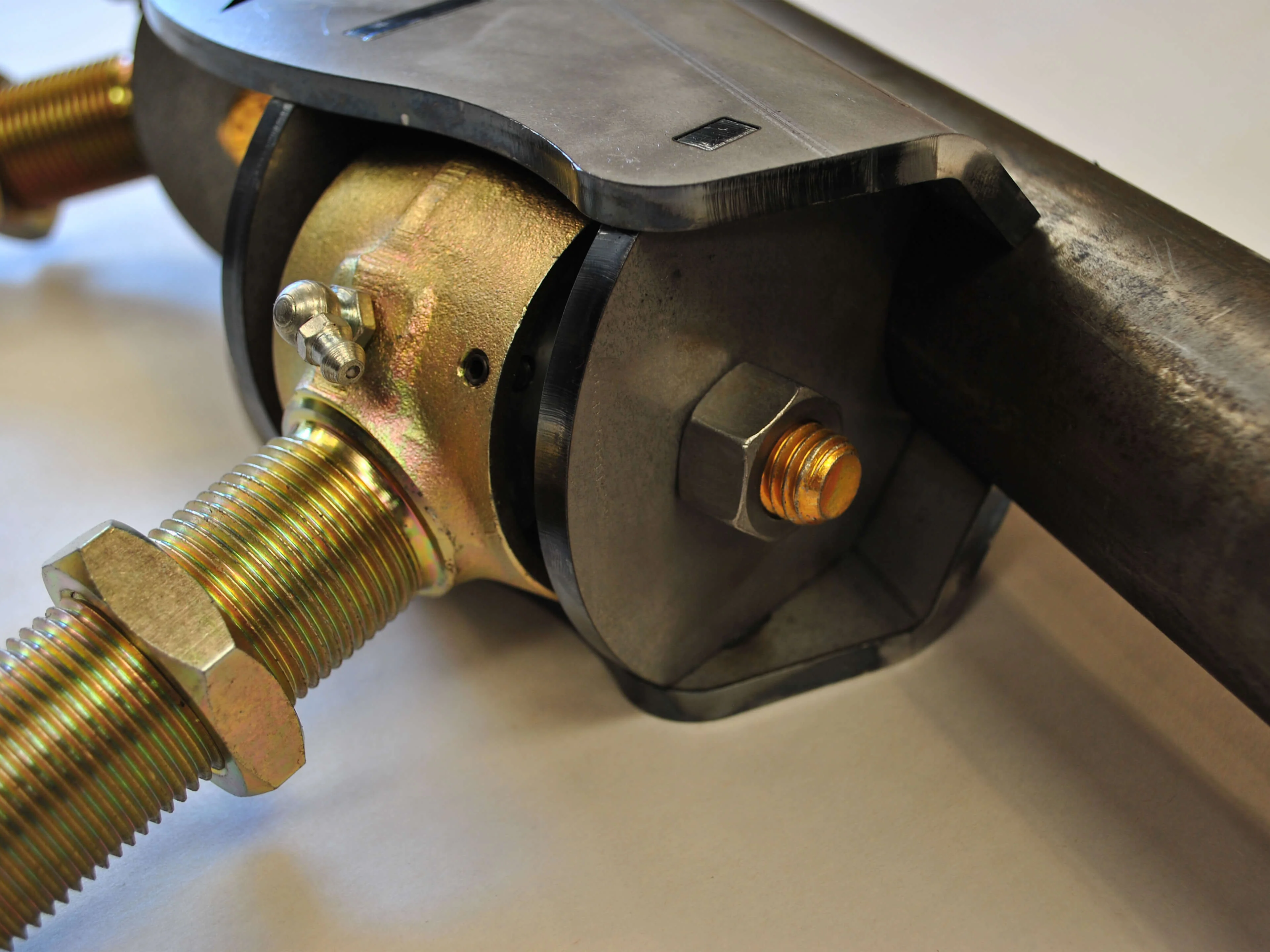

Rusty's Four-Link Crossmember Bracket

Rusty's Four-Link Crossmember Bracket saves hours of fabrication time and makes constructing mounts for your custom four-link project a lot easier!

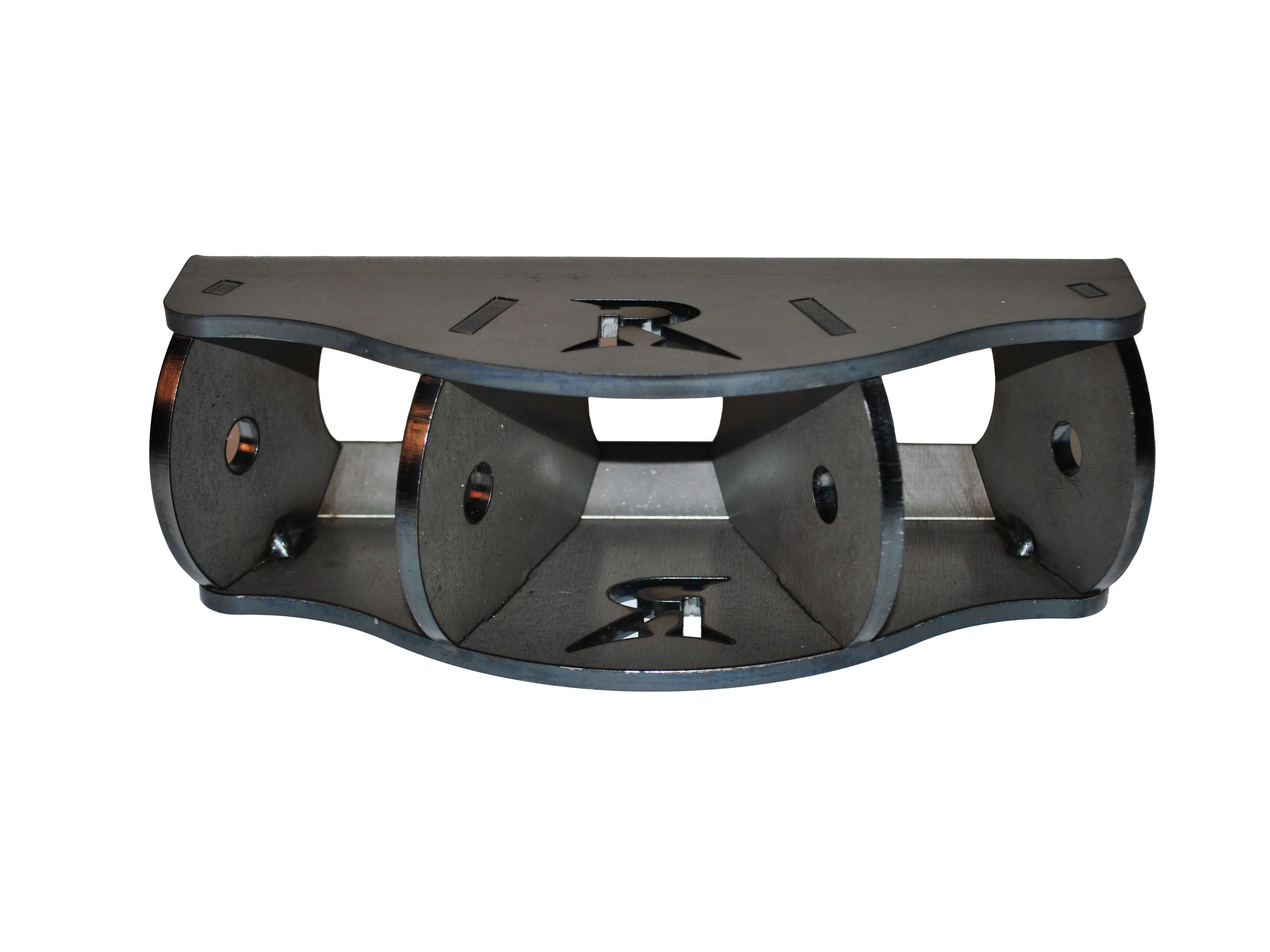

Constructed of 1/4" thick laser-cut steel that is then CNC-formed, the bracket uses Rusty's keyed technology that ensures the bracket pieces are in exactly the right place when you weld it together (the bracket is shipped un-welded). The back of the bracket is formed to fit 2" tubing. The control arm mounts are designed to fit standard 2.625" control arms, which are a common size for Jeep arms. They are set also at a 22-degree angle, which is the most common angle for four-link systems, though the spacing and angle can be adjusted if necessary.

SPECIFICATIONS:

• 10 inches long

• Mounting tabs are set at a 22 degree angle

• 2.625" inside mount spacing

• 9/16" mounting holes

• Fits 2" diameter tubing

• Shipped un-welded
