RockJock Narrow 2" Forged Johnny Joint® 1" LH Thread (1.600" x .625" Ball)
RockJock Narrow 2" Forged Johnny Joint® 1" LH Thread (1.600" x .625" Ball)
$23.10
Original: $66.00
-65%
RockJock Narrow 2" Forged Johnny Joint® 1" LH Thread (1.600" x .625" Ball)—
$66.00
$23.10
The Story

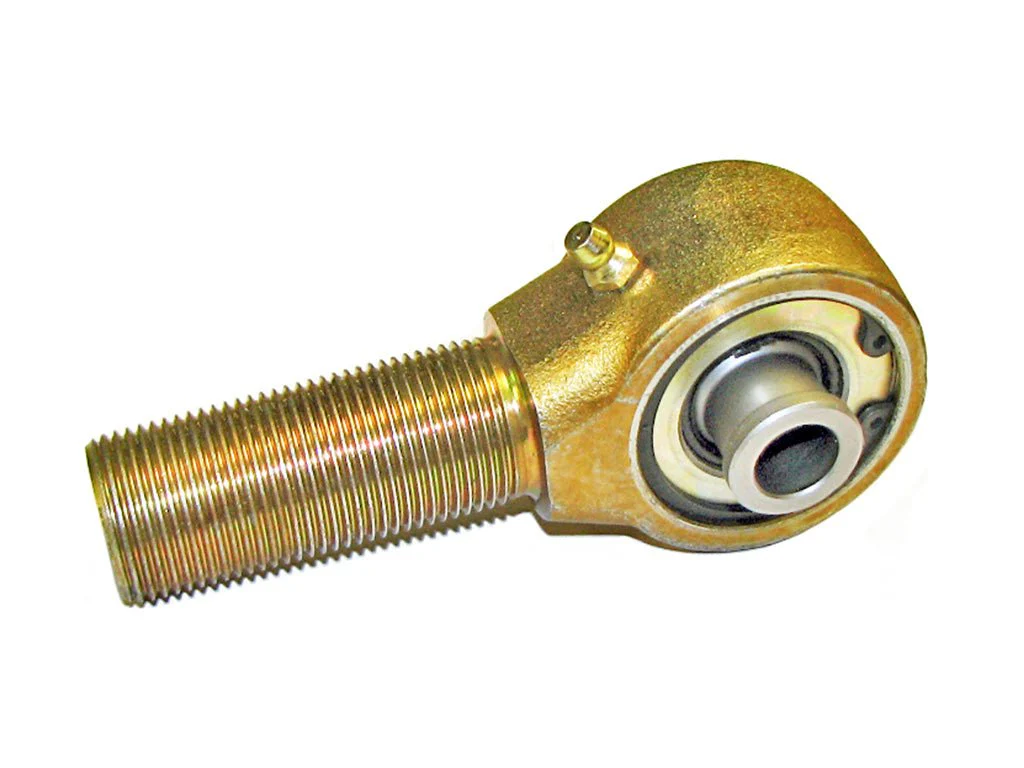

This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2-1/4" of 1"-14 left hand threads on the shank and is greasable through the outer shell.
Body Type
Forged Steel (Threaded)
Body Series
2 inch OD, Narrow Body
Body Width
1.2 inches
Thread Size
1 inch, 14 TPI
Thread Direction
Left Hand
Shank Length
2 1/4 inch
Mount Width
1.600 inches
Hole Diameter
.625 inch (5/8)
Misalignment
22° Total
Lubrication Method
External zerk fitting located on joint body
Body Finish
Yellow zinc plating
Description
This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2-1/4" of 1"-14 left hand threads on the shank and is greasable through the outer shell.
Body Type
Forged Steel (Threaded)
Body Series
2 inch OD, Narrow Body
Body Width
1.2 inches
Thread Size
1 inch, 14 TPI
Thread Direction
Left Hand
Shank Length
2 1/4 inch
Mount Width
1.600 inches
Hole Diameter
.625 inch (5/8)
Misalignment
22° Total
Lubrication Method
External zerk fitting located on joint body
Body Finish
Yellow zinc plating
